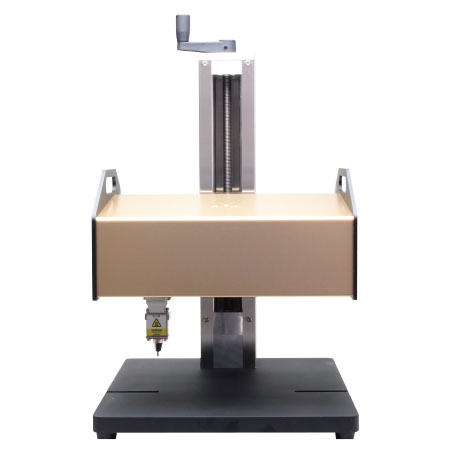

Image of MB2015 (champagne gold)
Image of MB2015 (wine red)

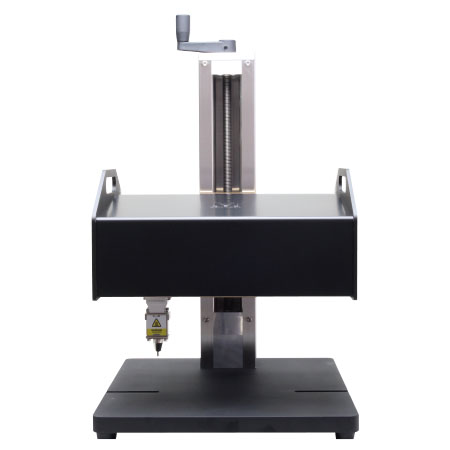

Image of MB2015 (black)
Image of MB2015 (gun metalic)

MB2015

$8,790

Our largest MarkinBOX model.
Marking area of X axis 200mm × Y axis 150mm.Most suitable for large plate and workparts.
Front view of the MarkinBOX series MB2015 main unit

Compare
SKU: N/A Category:

Description

Product details

  • Image of Big Solenoid (BSD) for deeper marking
  • Big Solenoid (BSD) for deeper marking is an option.

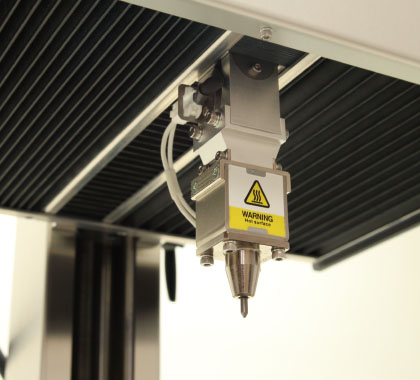

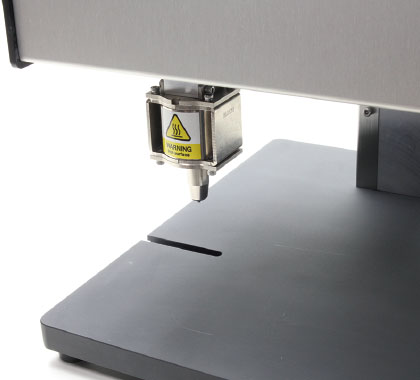

  • Image of the engraving drill section with shutter on the bottom view of the MarkinBOX Series MB2015 main unit
  • Shutter to keep debris out is standard feature.

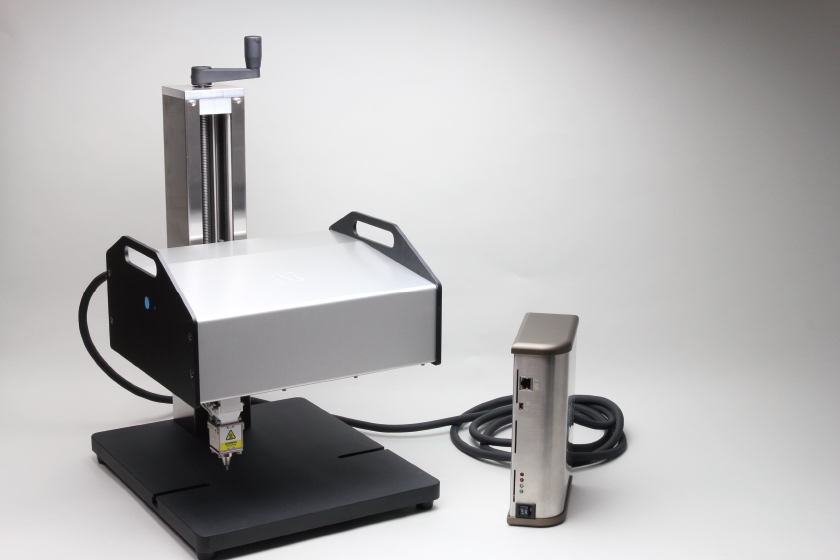

  • Image of the MarkinBOX series MB2015 main unit
  • Portable model (option)
    Total weight 8.5kg (18.7lbs)

Workpiece samples

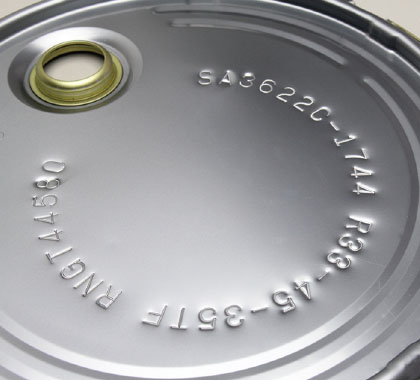

  • Image of numbers 'SA3622C-1744 R33-45-35TF RNGT44580' engraved in an arc on a drum cover
  • Marking on plated mild steel.

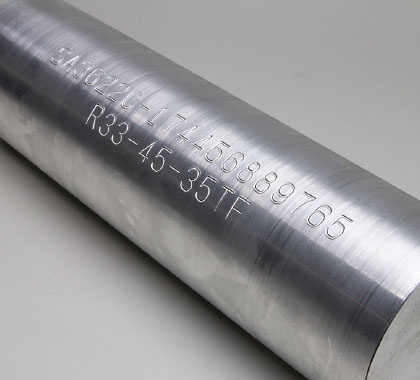

  • Image of a cylindrical large round bar engraved with text and numbers 'SA36220-1 74456889765 R33-45-35TF'
  • Marking on round stainless steel.

Details of MB2015

Specification / Price

Marking areaX axis 200mm (8″) x Y axis 150mm (6″)
Standard cable length2M (6′)
Head dimensions308mm (12″) x 269mm (10.6″) x 249mm (9.8″)
Head weight6.3kg (13.9lbs)
Tool and post dimensions310mm (12.2″) x 370mm (14.6″) x 544mm (21.4″)
Tool and post weight10.7kg (23.6lbs)
Material applicationMetal (HRC62), Plastics, Papers, Woods
Recommended Retail PriceUS$8,790 + TAX ～

*Taxes, tariffs, freight and currency exchange rates are different on depend on countries.

Overview

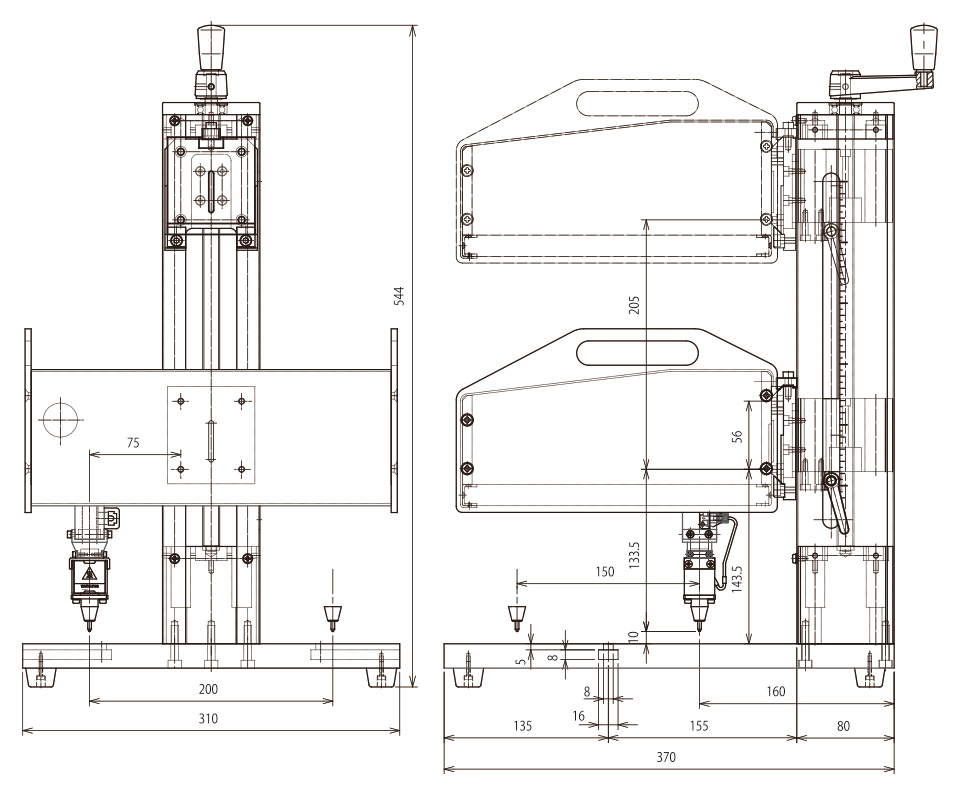

Drawing of MB2015

Related products

Additional information

Color

Champagne Gold, Gun Metal, Silver, Wine Red, Black
