MB3315S

$5,790 – $6,490

Portability-focused compact marker.
Marking area of X axis 33mm × Y axis 15mm.
Easy portable marking with lightweight 1.5kg (3.3lbs).

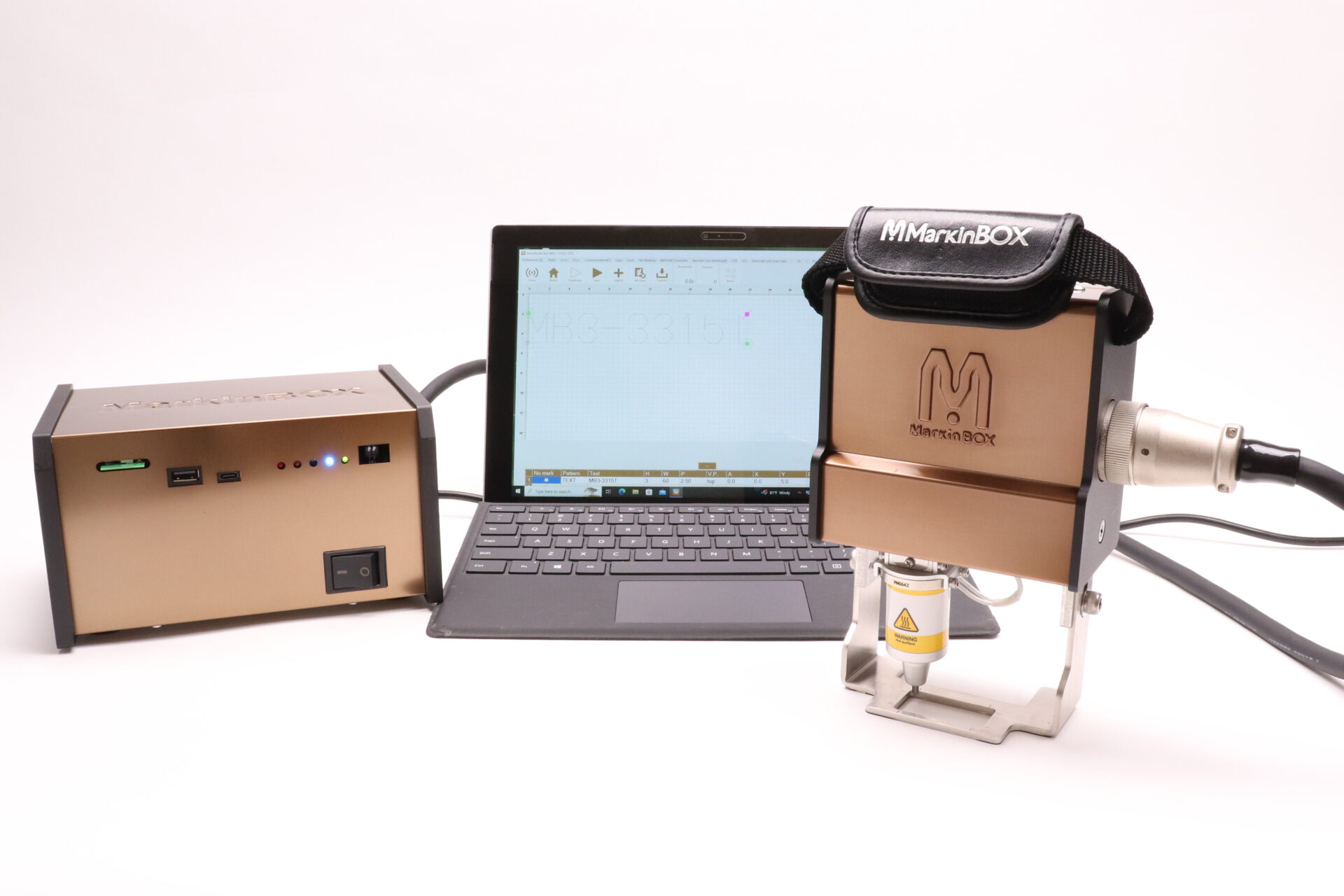

Image of the MarkinBOX Series MB3315S (red) and a laptop with a blueprint displayed on the screen, arranged on the left side
An optional Metal Head Cover (Aluminum) is also available.

Compare
SKU: N/A Category:

Description

Product details

  • Image of a person holding MarkinBOX Series MB3315S by hand and engraving towards a wall
  • Easy portable marking with lightweight 1.5kg (3.3lbs).


  • Image of the bottom view of the MarkinBOX Series MB3315S
  • Shutter to keep debris out is standard feature.


  • Image of metal cover for MB3315S
  • A metal cover is provided as an option.

Workpiece samples

  • Image of 'TY 1678' text and QR code engraved on a steel
  • 2D code marking on hardened steel (HRC62)./li>


  • Image of 'AH1020' text engraved on a steel part
  • Marking on metal casting.

Details of MB3315S

Specification / Price

Marking areaX axis 33mm (1.3″) x Y axis 15mm (0.6″)
Standard cable length3M (10′)
Head dimensions116mm (4.6″) x 73mm (2.9″) x 190mm (7.5″)
Head weight1.5kg (3.3lbs)
Tool and post dimensions
(option)		220mm (8.7″) x 300mm (11.8″) x 573mm (22.6″)
Material applicationMetal (HRC62), Plastics, Papers, Woods
Recommended Retail PriceUS$5,790 + TAX ～

*Taxes, tariffs, freight and currency exchange rates are different on depend on countries.

Overview

Drawing of MB3315S

Related products

Additional information

Weight16 lbs
Dimensions16 × 11 × 10 in
Model

Optional Metal Head cover (AL), Standard Head cover (PC) / BLACK, Standard Head cover (PC) / BLUE, Standard Head cover (PC) / GREEN, Standard Head cover (PC) / RED, Standard Head cover (PC) / SILVER
